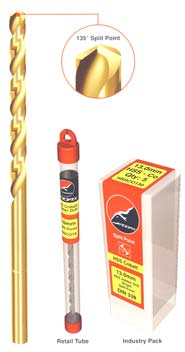

HSS - Cobalt Jobber Drills - DIN338 - Retail Tube / Industry Pack
HSS - Cobalt Jobber Drills - DIN338 - Retail Tube / Industry Pack
Description
Technical Data
General Uses
For particularly tough or hard metal drilling applications, such as stainless, Cr-Ni and special acid resistant steels
Features
- Manufactured to DIN338
- M35 Alloyed HSS steel with 5% Cobalt content.
- Fully ground from solid material.
- High heat resistance for particularly tough metal drilling.
- 135° split point eradicates the need to pre-drill/ centre punch. Prevents 'walking' and enables faster penetration.
- Dimensionally Precise
- Packed in telescopic plastic tubes.
- High performance split point tip
Data
| HSS-Cobalt Jobber Drills-DN338-Retail Tube |
| Article Number | Drill Diameter (mm) | Working Length (mm) | Total Length (mm) | Pack Qty. | Carton Qty.
|
|---|
| HSSCOR1 | 1 | 12 | 34 | 1 | 10
| | HSSCOR15 | 1.5 | 18 | 40 | 1 | 10
| | HSSCOR2 | 2 | 24 | 49 | 1 | 10
| | HSSCOR25 | 2.5 | 30 | 57 | 1 | 10
| | HSSCOR3 | 3 | 33 | 61 | 1 | 10
| | HSSCOR32 | 3.2 | 36 | 65 | 1 | 10
| | HSSCOR33 | 3.3 | 36 | 65 | 1 | 10
| | HSSCOR35 | 3.5 | 39 | 70 | 1 | 10
| | HSSCOR4 | 4 | 43 | 75 | 1 | 10
| | HSSCOR42 | 4.2 | 43 | 75 | 1 | 10
| | HSSCOR45 | 4.5 | 47 | 80 | 1 | 10
| | HSSCOR48 | 4.8 | 52 | 86 | 1 | 10
| | HSSCOR5 | 5 | 52 | 86 | 1 | 10
| | HSSCOR55 | 5.5 | 57 | 93 | 1 | 10
| | HSSCOR6 | 6 | 57 | 93 | 1 | 10
| | HSSCOR65 | 6.5 | 63 | 101 | 1 | 10
| | HSSCOR7 | 7 | 69 | 109 | 1 | 10
| | HSSCOR75 | 7.5 | 69 | 109 | 1 | 10
| | HSSCOR8 | 8 | 75 | 117 | 1 | 10
| | HSSCOR85 | 8.5 | 75 | 117 | 1 | 10
| | HSSCOR9 | 9 | 81 | 125 | 1 | 10
| | HSSCOR95 | 9.5 | 81 | 125 | 1 | 10
| | HSSCOR100 | 10 | 87 | 133 | 1 | 10
| | HSSCOR105 | 10.5 | 87 | 133 | 1 | 10
| | HSSCOR110 | 11 | 94 | 142 | 1 | 10
| | HSSCOR115 | 11.5 | 94 | 142 | 1 | 10
| | HSSCOR120 | 12 | 101 | 151 | 1 | 10
| | HSSCOR125 | 12.5 | 101 | 151 | 1 | 10
| | HSSCOR130 | 13 | 101 | 151 | 1 | 10
| |
|
| HSS-Cobalt Jobber Drills-DIN338-Industry Pack |
| Article Number | Drill Diameter (mm) |
Working Length (mm) |
Total Length (mm) |
Pack Qty. |
Carton Qty.
|
|---|
| HSSCO1 | 1 | 12 | 34 | 10 | 10
| | HSSCO15 | 1.5 | 18 | 40 | 10 | 10
| | HSSCO2 | 2 | 24 | 49 | 10 | 10
| | HSSCO25 | 2.5 | 30 | 57 | 10 | 10
| | HSSCO3 | 3 | 33 | 61 | 10 | 10
| | HSSCO32 | 3.2 | 36 | 65 | 10 | 10
| | HSSCO33 | 3.3 | 36 | 65 | 10 | 10
| | HSSCO35 | 3.5 | 39 | 70 | 10 | 10
| | HSSCO4 | 4 | 43 | 75 | 10 | 10
| | HSSCO42 | 4.2 | 43 | 75 | 10 | 10
| | HSSCO45 | 4.5 | 47 | 80 | 10 | 10
| | HSSCO48 | 4.8 | 52 | 86 | 10 | 10
| | HSSCO5 | 5 | 52 | 86 | 10 | 10
| | HSSCO55 | 5.5 | 57 | 93 | 10 | 10
| | HSSCO6 | 6 | 57 | 93 | 10 | 10
| | HSSCO65 | 6.5 | 63 | 101 | 10 | 10
| | HSSCO7 | 7 | 69 | 109 | 10 | 10
| | HSSCO75 | 7.5 | 69 | 109 | 5 | 10
| | HSSCO8 | 8 | 75 | 117 | 5 | 10
| | HSSCO85 | 8.5 | 75 | 117 | 5 | 10
| | HSSCO9 | 9 | 81 | 125 | 5 | 10
| | HSSCO95 | 9.5 | 81 | 125 | 5 | 10
| | HSSCO100 | 10 | 87 | 133 | 5 | 10
| | HSSCO105 | 10.5 | 87 | 133 | 5 | 10
| | HSSCO110 | 11 | 94 | 142 | 5 | 10
| | HSSCO115 | 11.5 | 94 | 142 | 5 | 10
| | HSSCO120 | 12 | 101 | 151 | 5 | 10
| | HSSCO125 | 12.5 | 101 | 151 | 5 | 10
| | HSSCO130 | 13 | 101 | 151 | 5 | 10
| |
|
|
